BT8301

Full Service Videowall Mount with Micro-Adjustment

Modular mount for unlimted videowall displays

BT8301/B

Full Service Videowall Mount with Micro-Adjustment

Modular mount for unlimted videowall displays

Overview

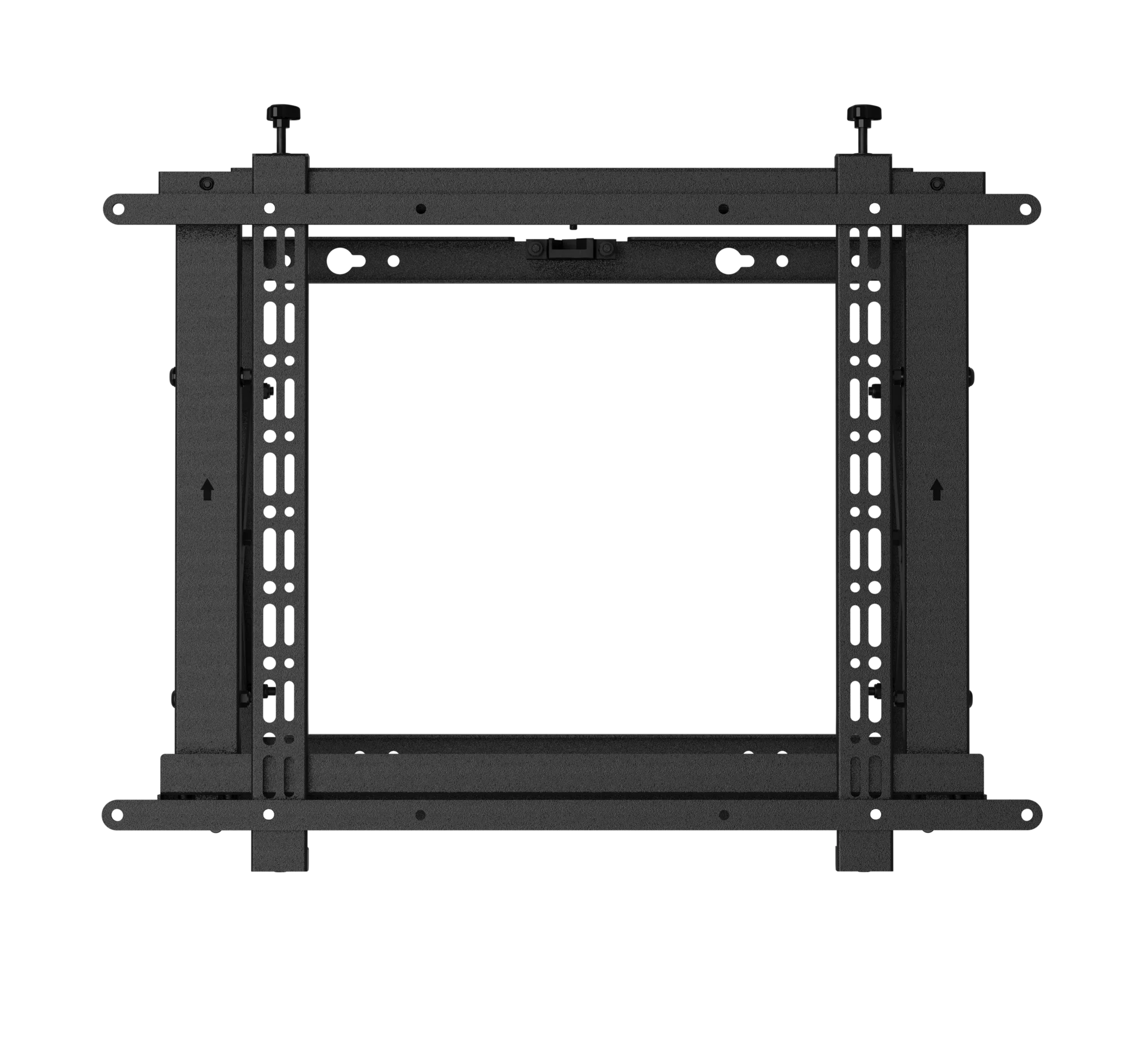

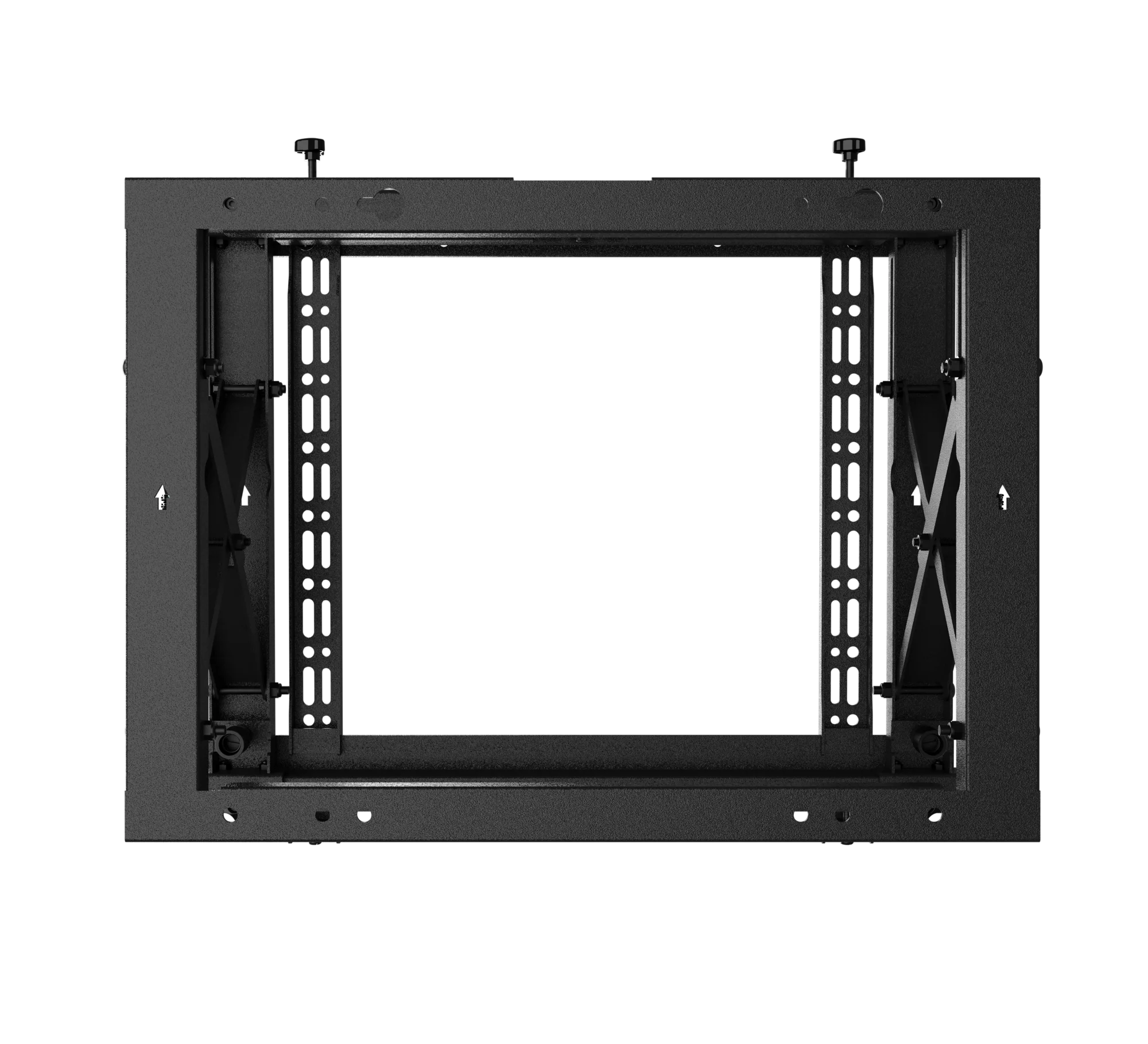

Designed to make videowall installations as simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8301 has a low profile design which is ideal for mounting into walls with a shallow recess, a pop-out system enables a quick and easy access to the rear of the mounted screen for servicing and maintenance and +/-4mm micro adjustment makes accurate screen alignment quick and easy.
Designed to make videowall installations as simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8301 has a low profile design which is ideal for mounting into walls with a shallow recess, a pop-out system enables a quick and easy access to the rear of the mounted screen for servicing and maintenance and +/-4mm micro adjustment makes accurate screen alignment quick and easy.

Product Features

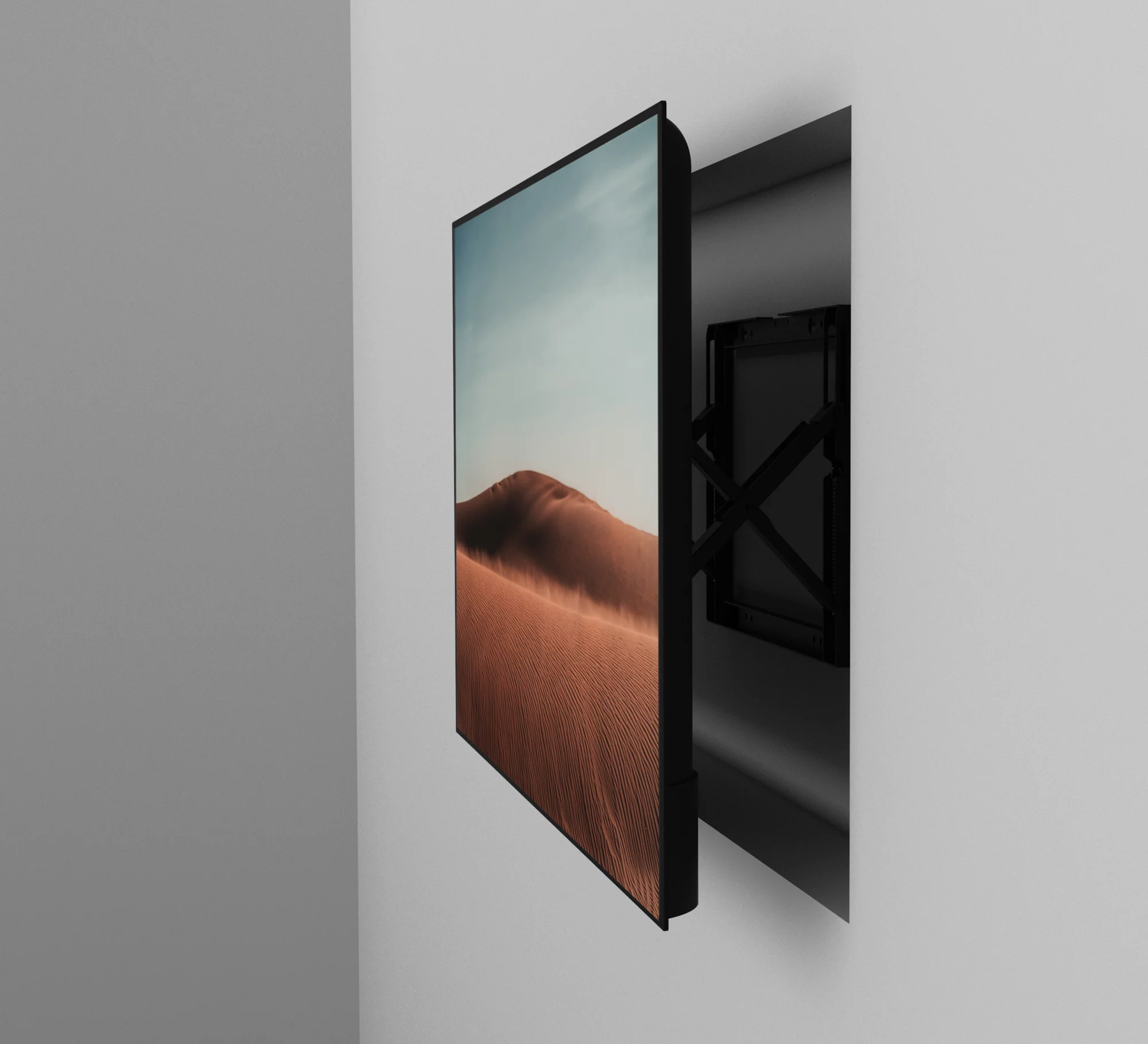

  • Slim design ideal for low profile installs on walls or in shallow recesses
  • Modular mount allows videowall assembly in an unlimited number of configurations
  • Suitable for landscape or portrait screen mounting

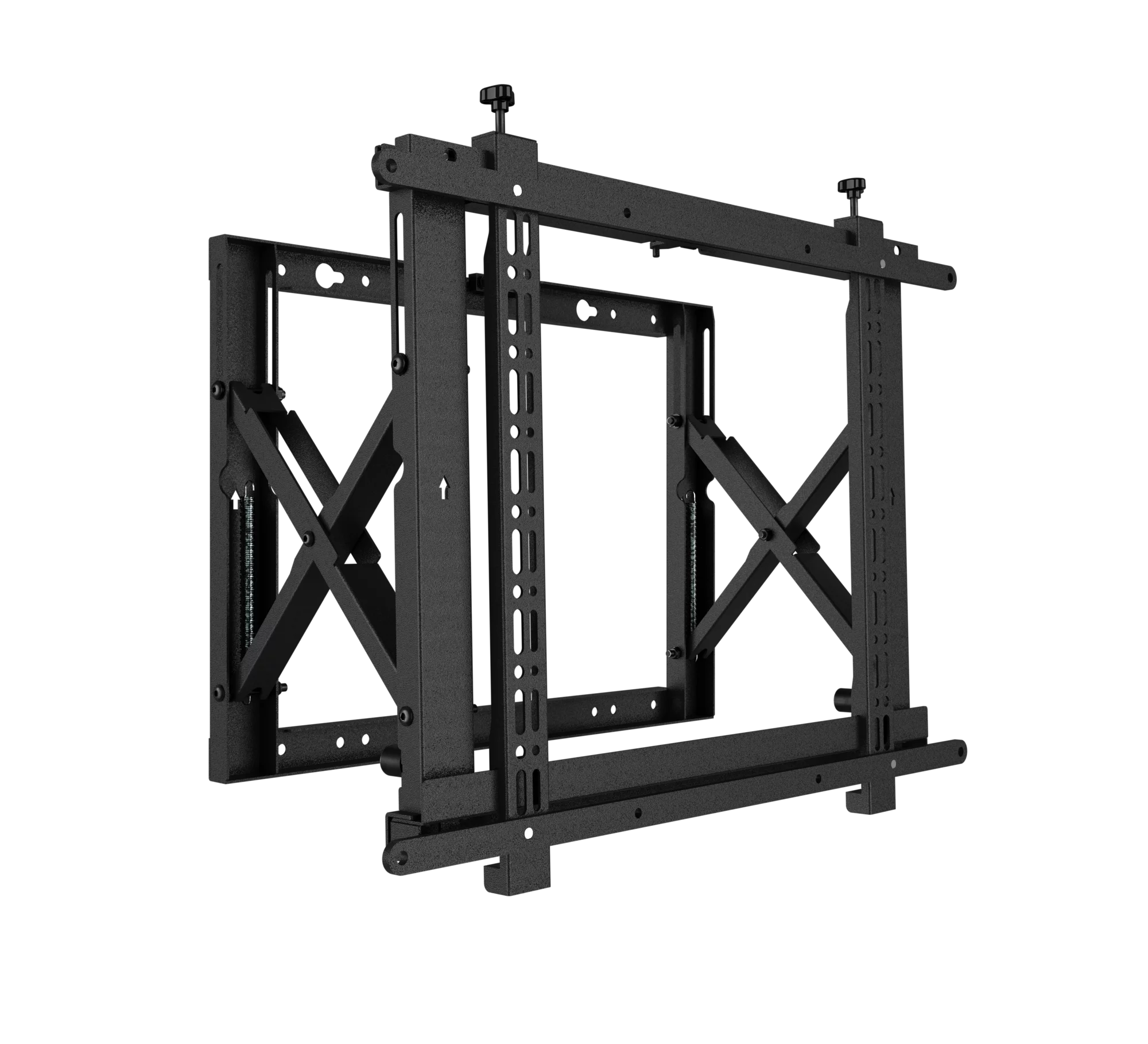

  • Push to open / push to close system provides quick and easy service access
  • Tool-less micro-adjusment of +/-4mm at each corner for seamless display alignment
  • Lateral adjustment of screen once mounted

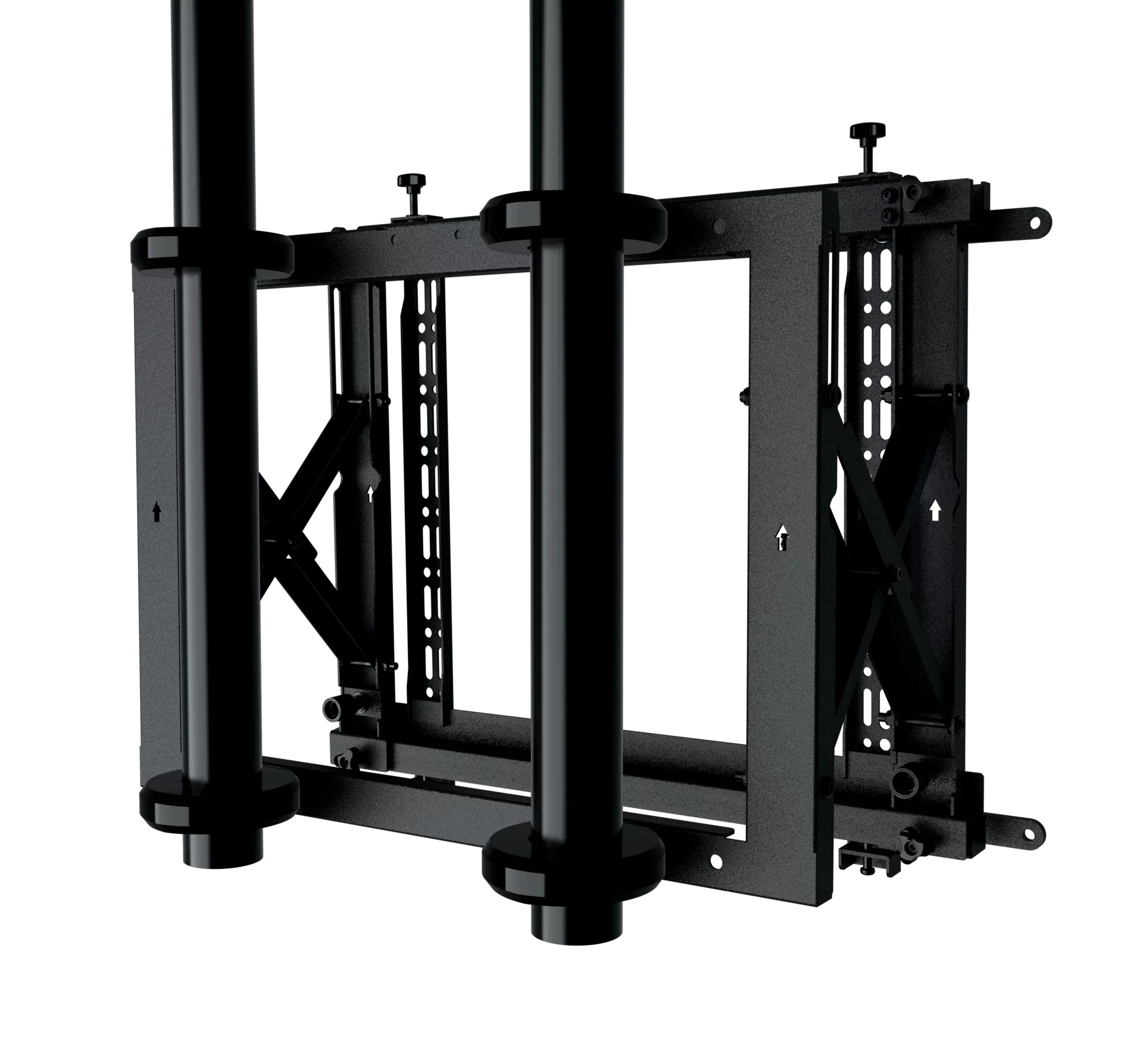

  • Compatible with B-Tech's collar and pole system for pole mounting screens
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included
  • Slim design ideal for low profile installs on walls or in shallow recesses
  • Modular mount allows videowall assembly in an unlimited number of configurations
  • Suitable for landscape or portrait screen mounting
  • Push to open / push to close system provides quick and easy service access
  • Tool-less micro-adjusment of +/-4mm at each corner for seamless display alignment
  • Lateral adjustment of screen once mounted
  • Compatible with B-Tech's collar and pole system for pole mounting screens
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included

Product Specifications

  • Recommended display size: 42" up to 70"
  • Max load: 35kg
  • VESA fixings: up to 600mm x 400mm*
  • Universal fixings: up to 442 x 436mm
  • Micro-adjustment per corner: -/+ 4mm

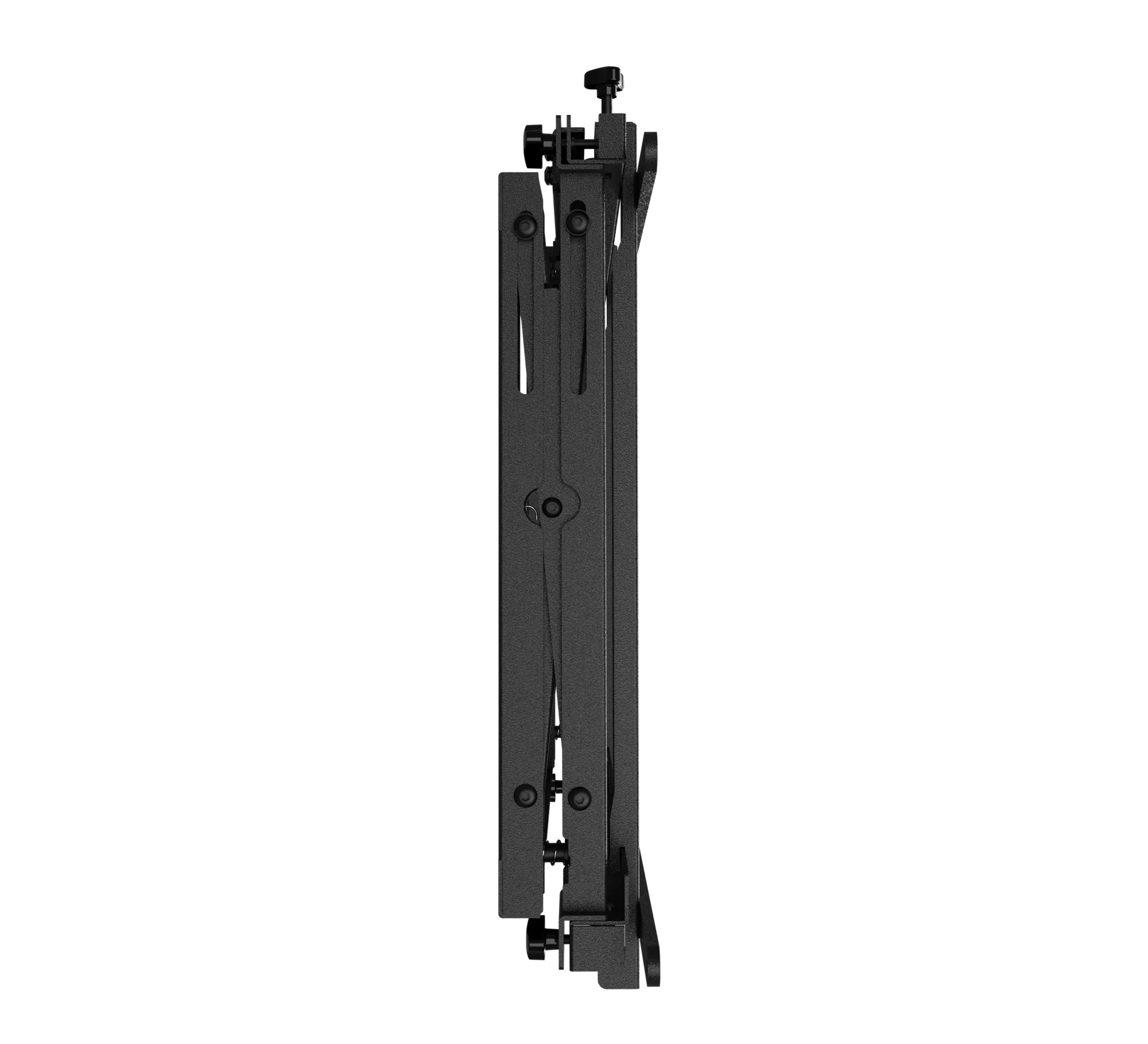

  • Distance from wall: 77.5mm
  • Popped out depth: 260mm
  • Screen height adjustment: 13mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *Please note using the included Interface Adaptor Arms to mount VESA 600mm x 400mm screens will increase the total depth of the product by 6mm, for a total depth of 83.5mm, 260mm whilst popped out (+/-4mm micro-adjustment).
  • Recommended display size: 42" up to 70"
  • Max load: 35kg
  • VESA fixings: up to 600mm x 400mm*
  • Universal fixings: up to 442 x 436mm
  • Micro-adjustment per corner: -/+ 4mm
  • Distance from wall: 77.5mm
  • Popped out depth: 260mm
  • Screen height adjustment: 13mm
  • Orientation: Landscape, Portrait
  • Colour: Black
  • *Please note using the included Interface Adaptor Arms to mount VESA 600mm x 400mm screens will increase the total depth of the product by 6mm, for a total depth of 83.5mm, 260mm whilst popped out (+/-4mm micro-adjustment).

Ordering & Box Information

Order Code: BT8301/B

Barcode: 5019318304538

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 10.20kg

Order Code: BT8301/B

Barcode: 5019318304538

HS Code: 83024200

Single Box Item or Multi Box Item: Single Box Item

Total Boxed Weight (kg): 10.20kg
