Universal Mobile Videowall Stand
Compatible with screens from 32" up to 75"
Overview

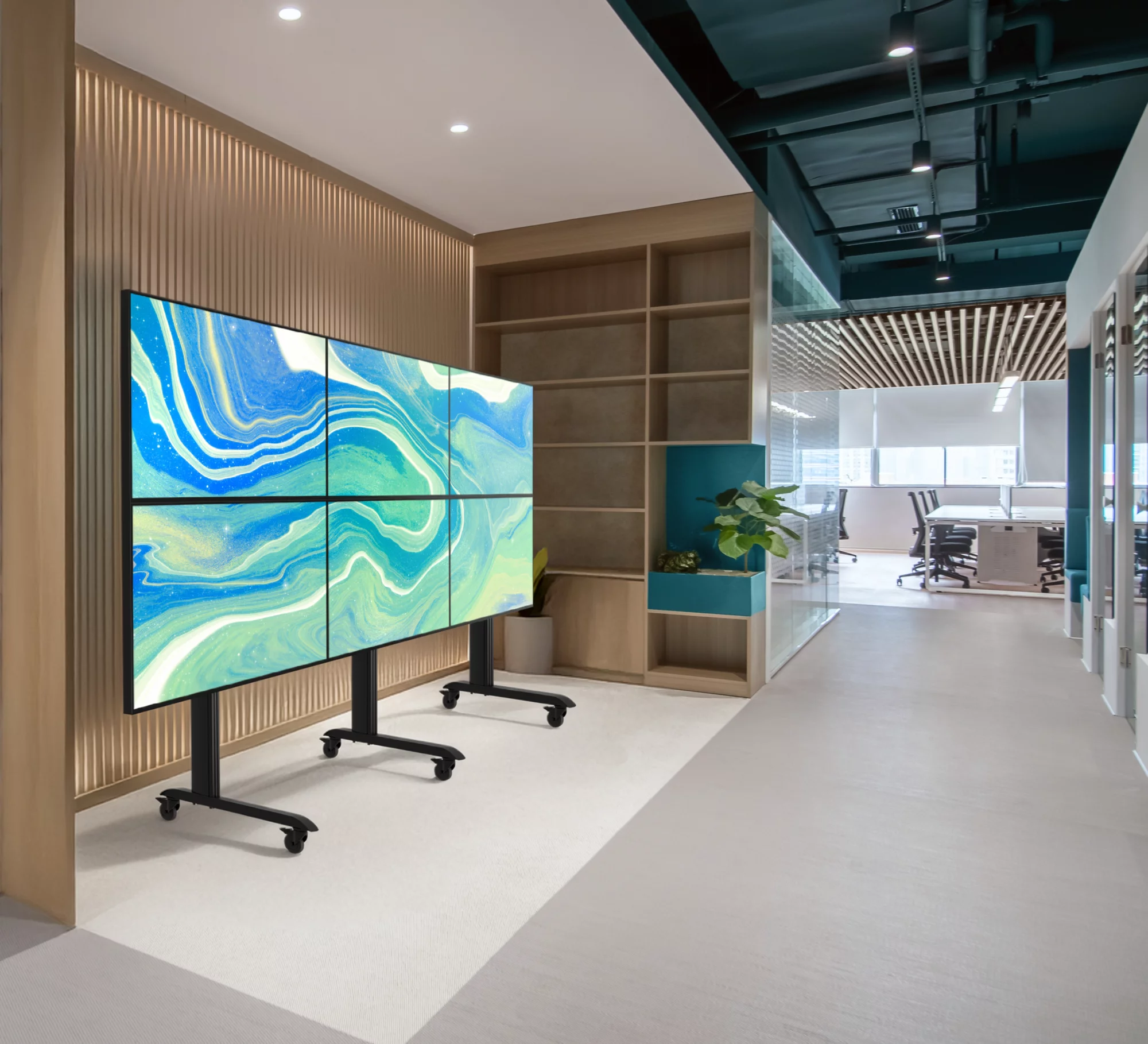

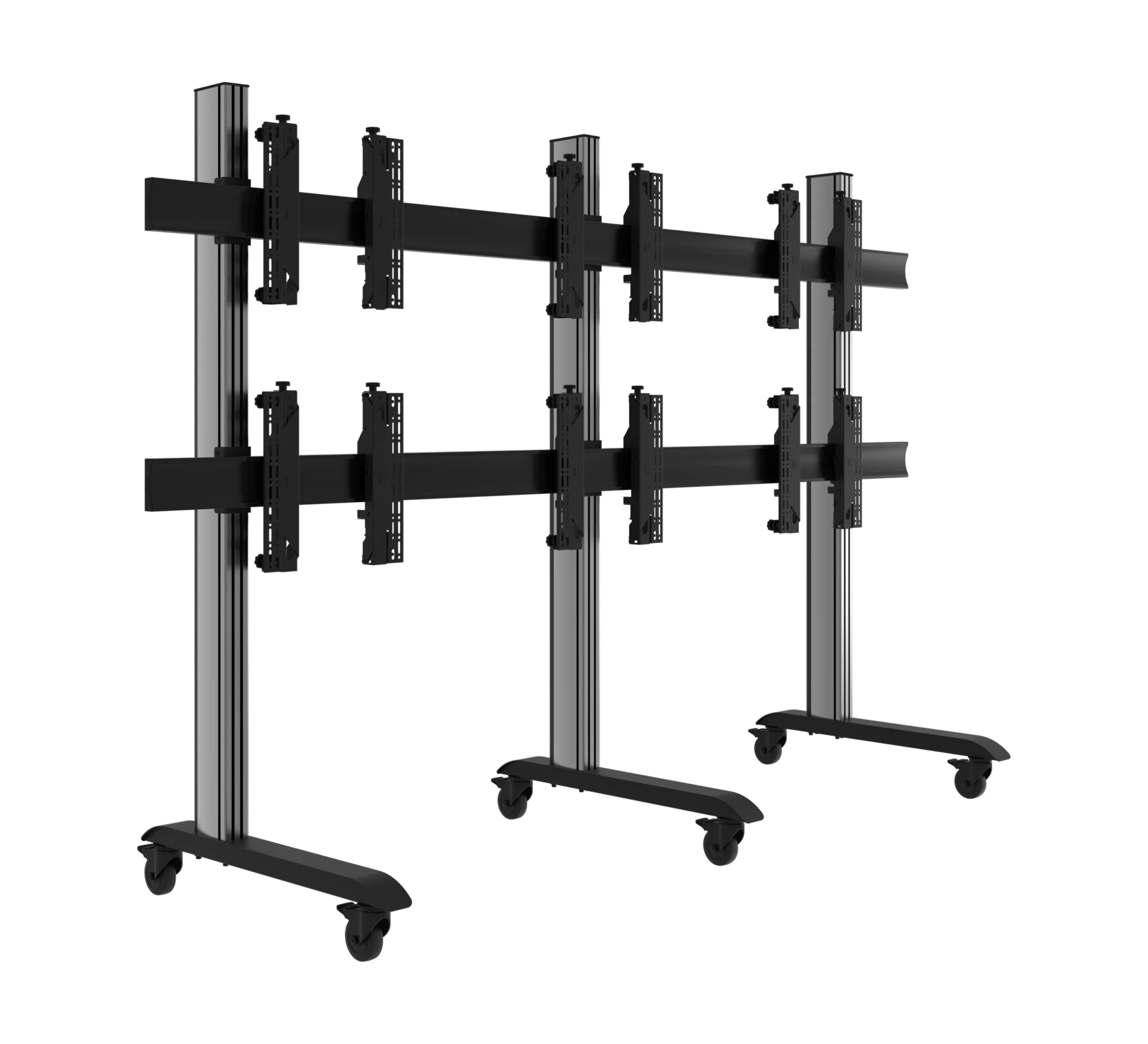

Designed for videowall installations, the BT8371 is a mobile mounting solution for screens from 32" to 75". As part of B-Tech’s dynamic System X range, it combines a lightweight yet exceptionally strong structure with a sleek, high-end aesthetic. The stand includes key time-saving features such as tool-less micro-adjustment and a universal screen position spacer, making installation fast and accurate. Available as standard in 2x2 and 3x3 packages, the BT8371 can also be specified in custom configurations via the System X Configurator at www.btechavmounts.com/systemx-configurator
Product Features
- Configurable mounting solution available to order to your requirements
- Universal design suitable for all videowall screens
- Suitable for landscape or portrait mounting

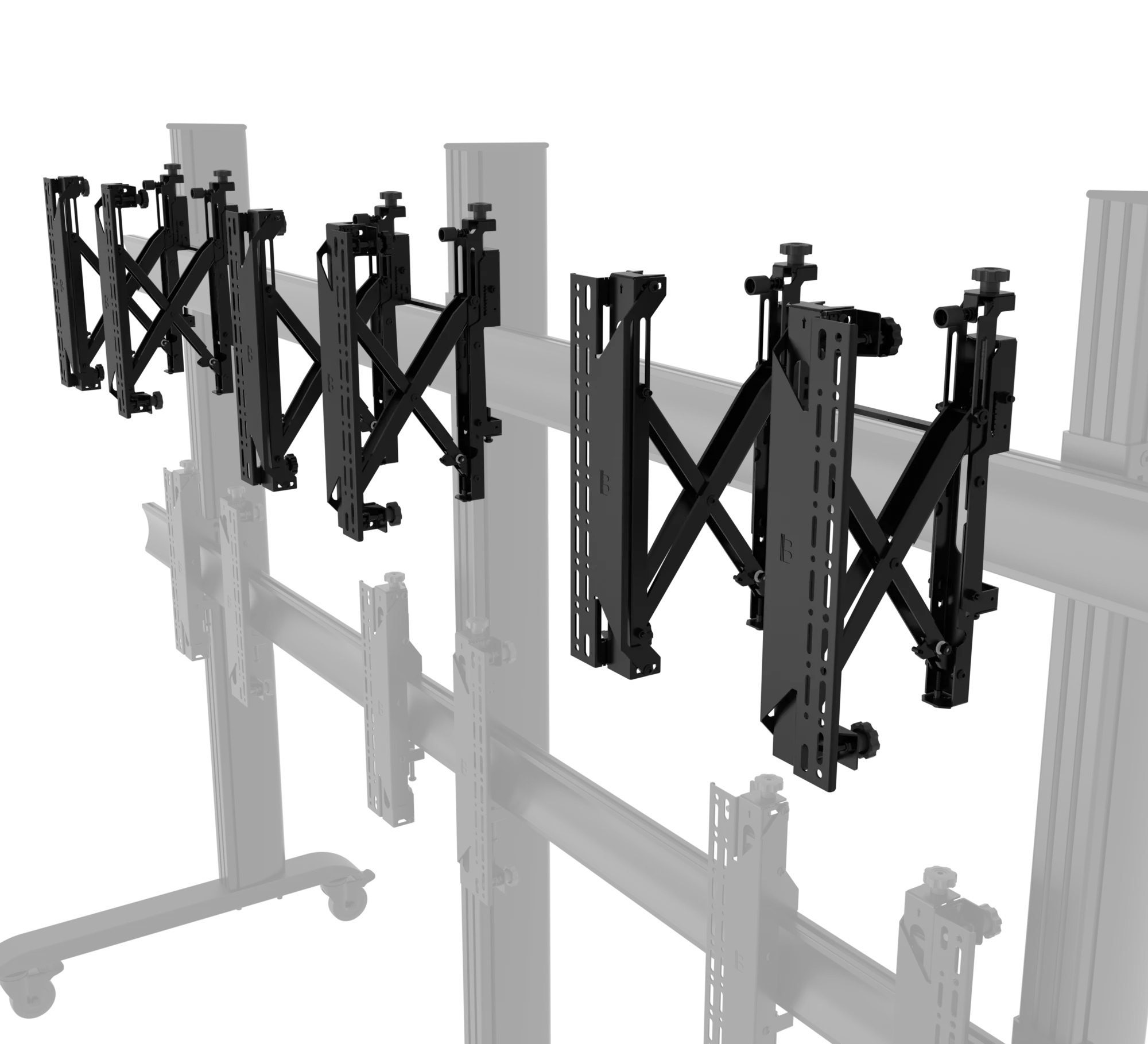

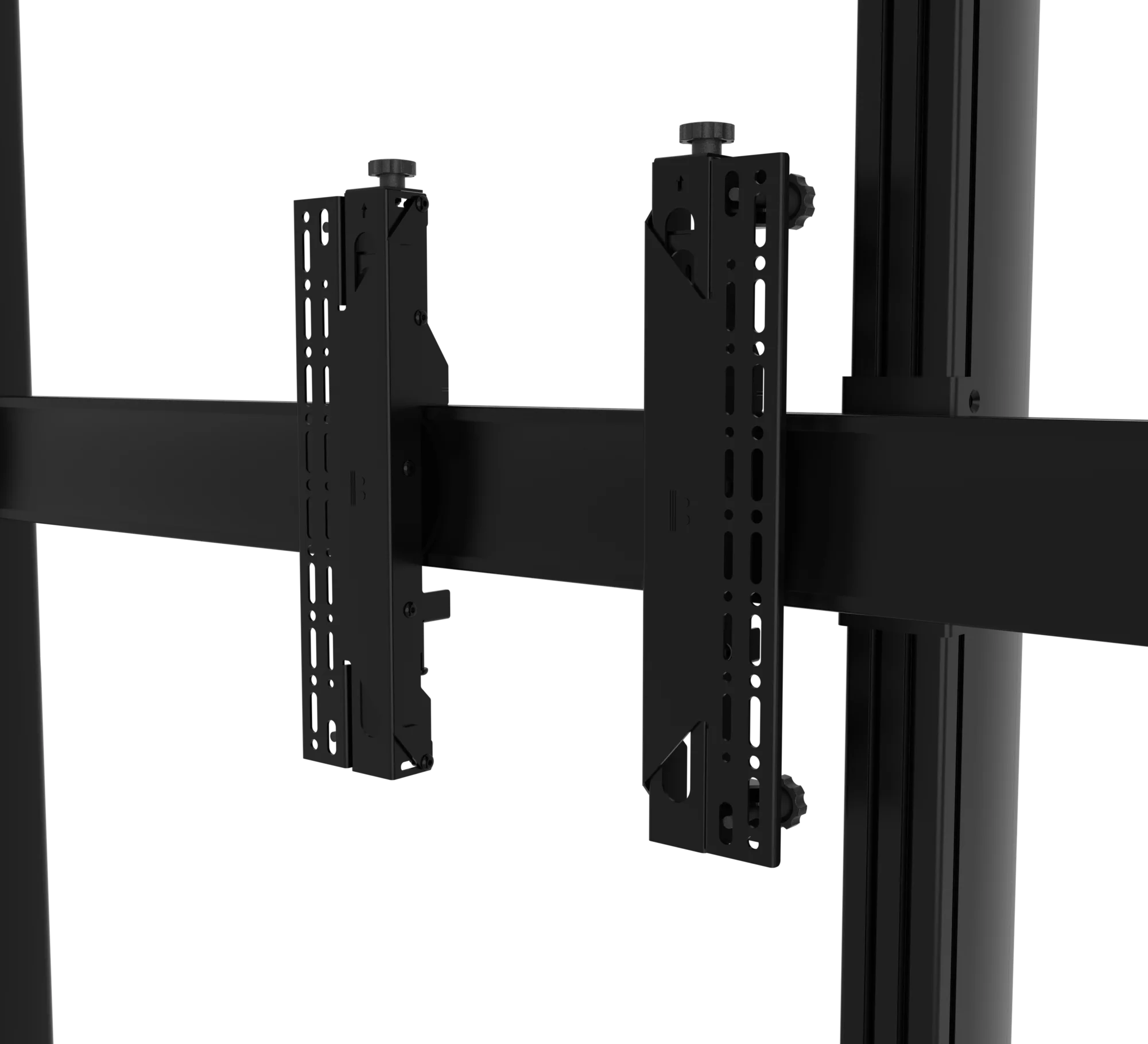

- Tool-less micro-adjustments for seamless screen alignment

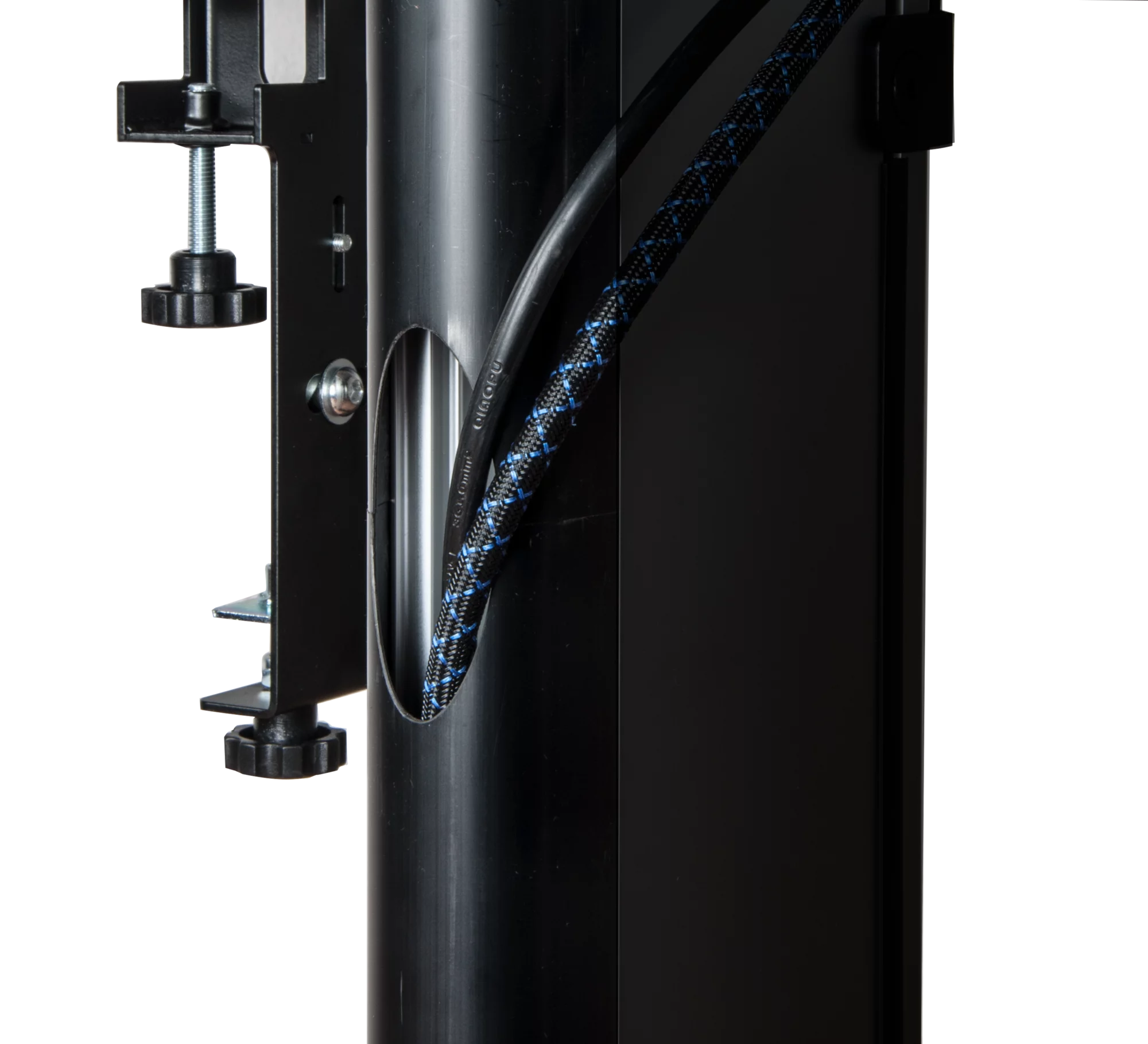

- Integrated cable management
- Includes adjustable levelling feet
- Includes non-marking 4" locking/braked castors
- Collar compatible accessories such as shelves can be fitted directly to the extrusion
- Includes re-usable screen position spacer to aid installation of screens
- Safety screws help prevent unauthorised removal of screens
- All mounting hardware included
- TUV certified
Product Specifications
- Recommended display size: 32" up to 75"
- Max load: 50kg (110lbs) per screen
- VESA® fixings: up to 900mm (35.4")*
- Orientation: Landscape, Portrait
- Colour options: Black, Black with Silver
- *VESA fixings refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require.
Ordering & Box Information
HS Code: 94032080
- China
- Vietnam
Country of Origin:
Single or Multi-Box Item: Multi Box Item
