BT8417

System X

Twin Screen VC Wall Mount

Includes VC Shelf

BT8417/B

System X

Twin Screen VC Wall Mount

Includes VC Shelf

Enquire Today View Downloads

Overview

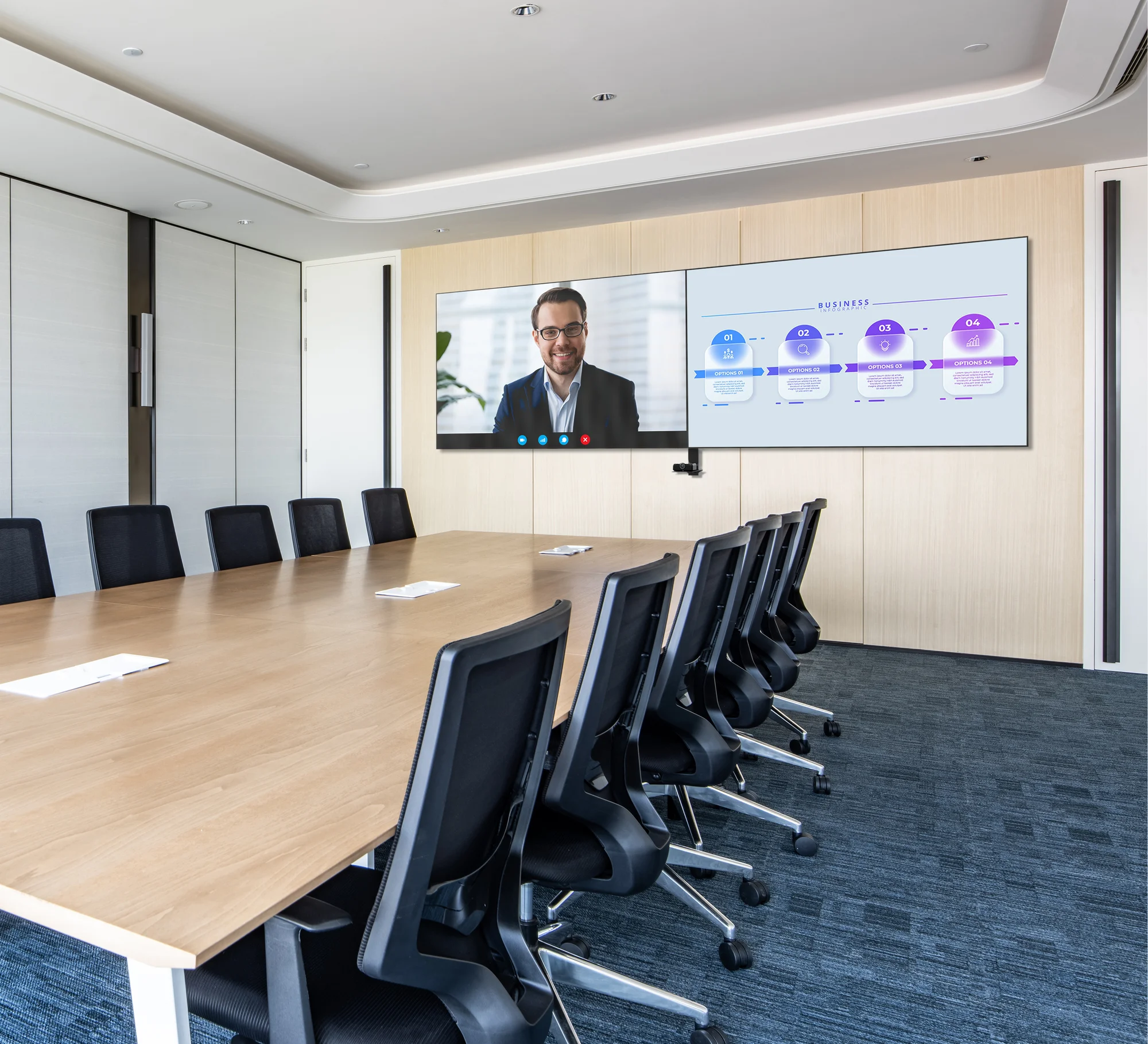

The BT8417 is a premium wall mounting solution designed to mount two screens side-by-side for video conferencing applications. The mount features an adjustable VC shelf that gives the user the flexibility of mounting a VC camera above or below the screens. Additional features include adjustable levelling screws for easy height adjustment of the screen once mounted, cable management clips and safety screws that help to prevent un-authorised removal of the screen.
The BT8417 is a premium wall mounting solution designed to mount two screens side-by-side for video conferencing applications. The mount features an adjustable VC shelf that gives the user the flexibility of mounting a VC camera above or below the screens. Additional features include adjustable levelling screws for easy height adjustment of the screen once mounted, cable management clips and safety screws that help to prevent un-authorised removal of the screen.

Product Features

  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality

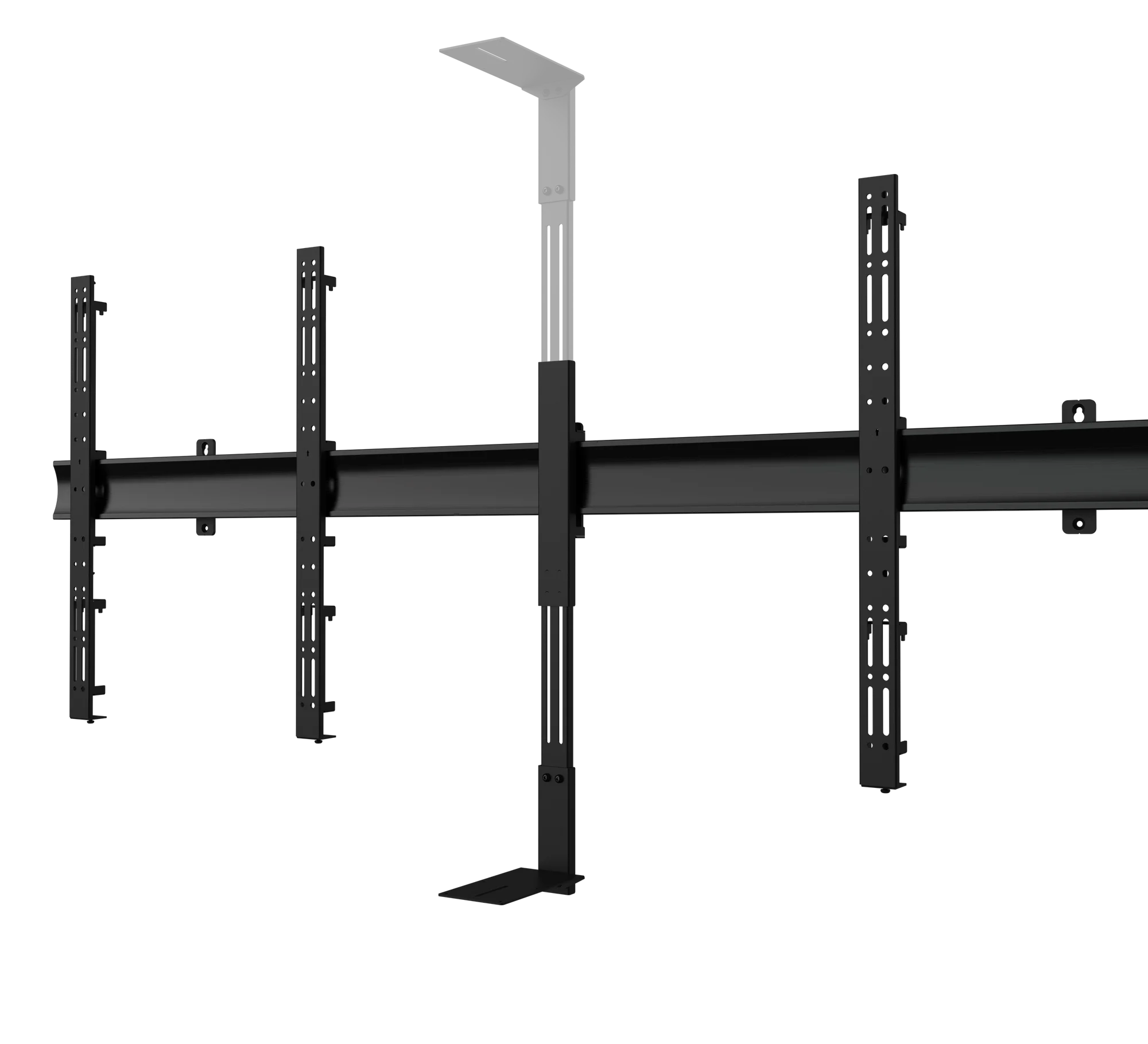

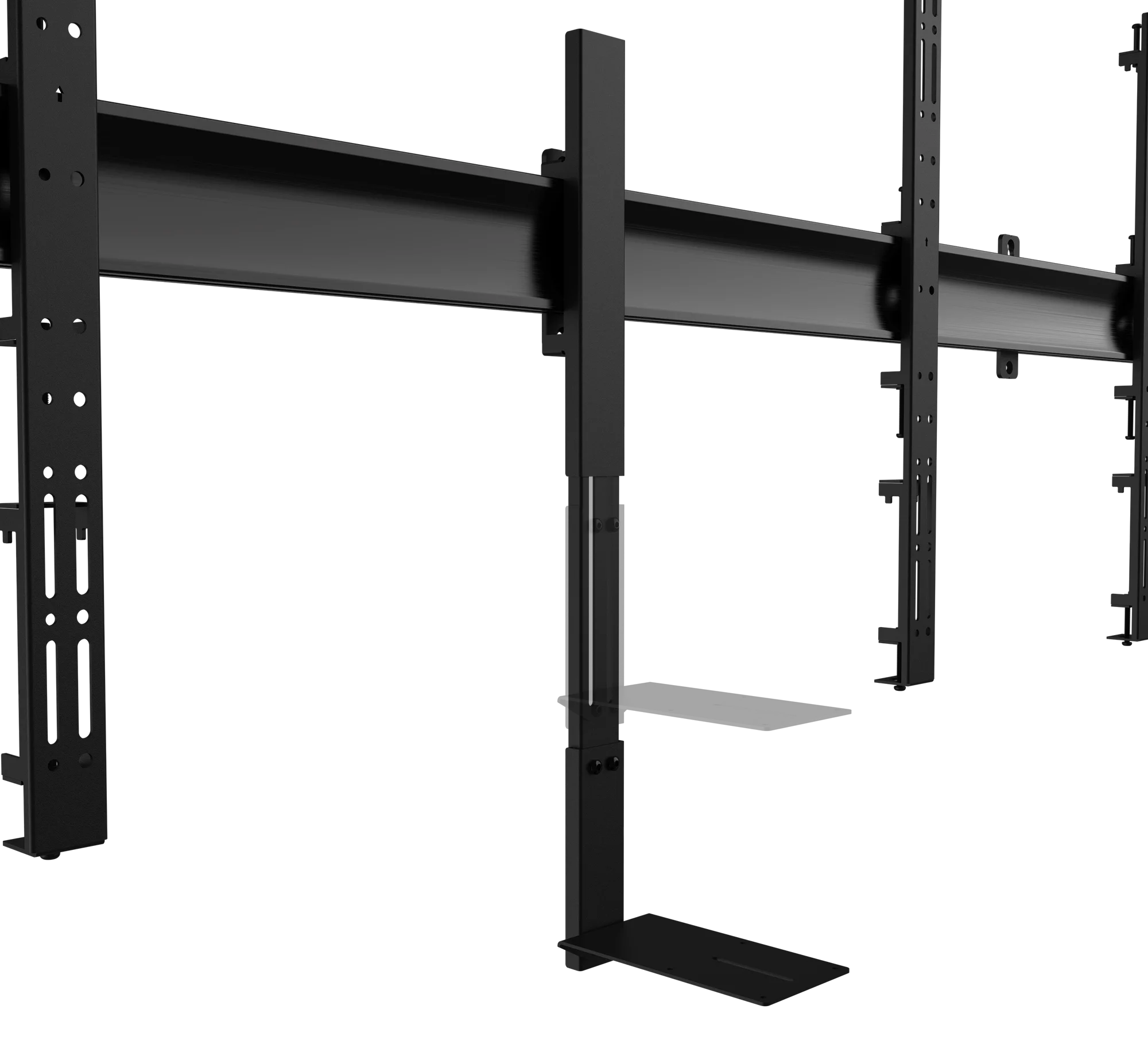

  • Includes VC shelf which can be fixed above or below the screen

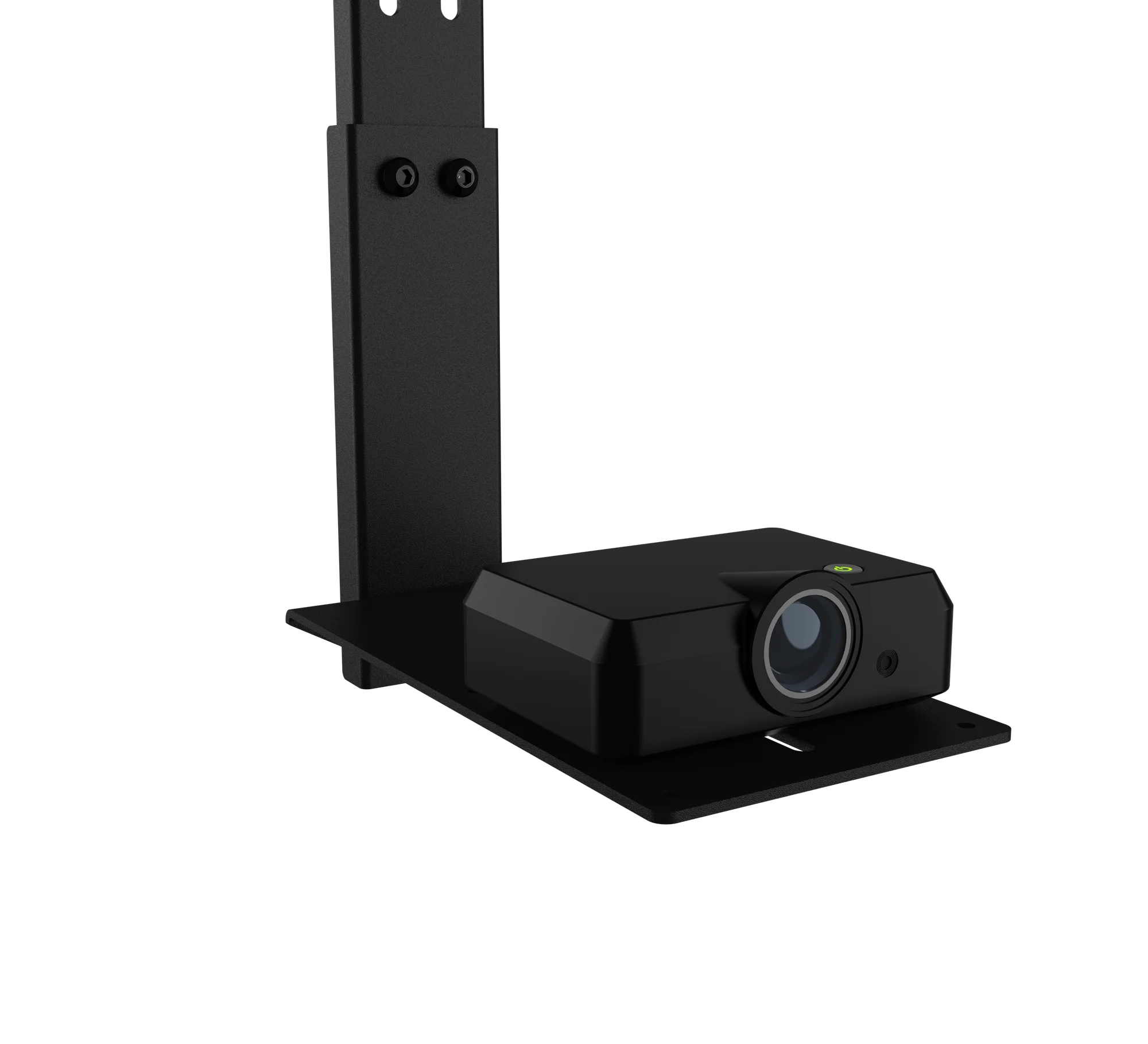

  • VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points

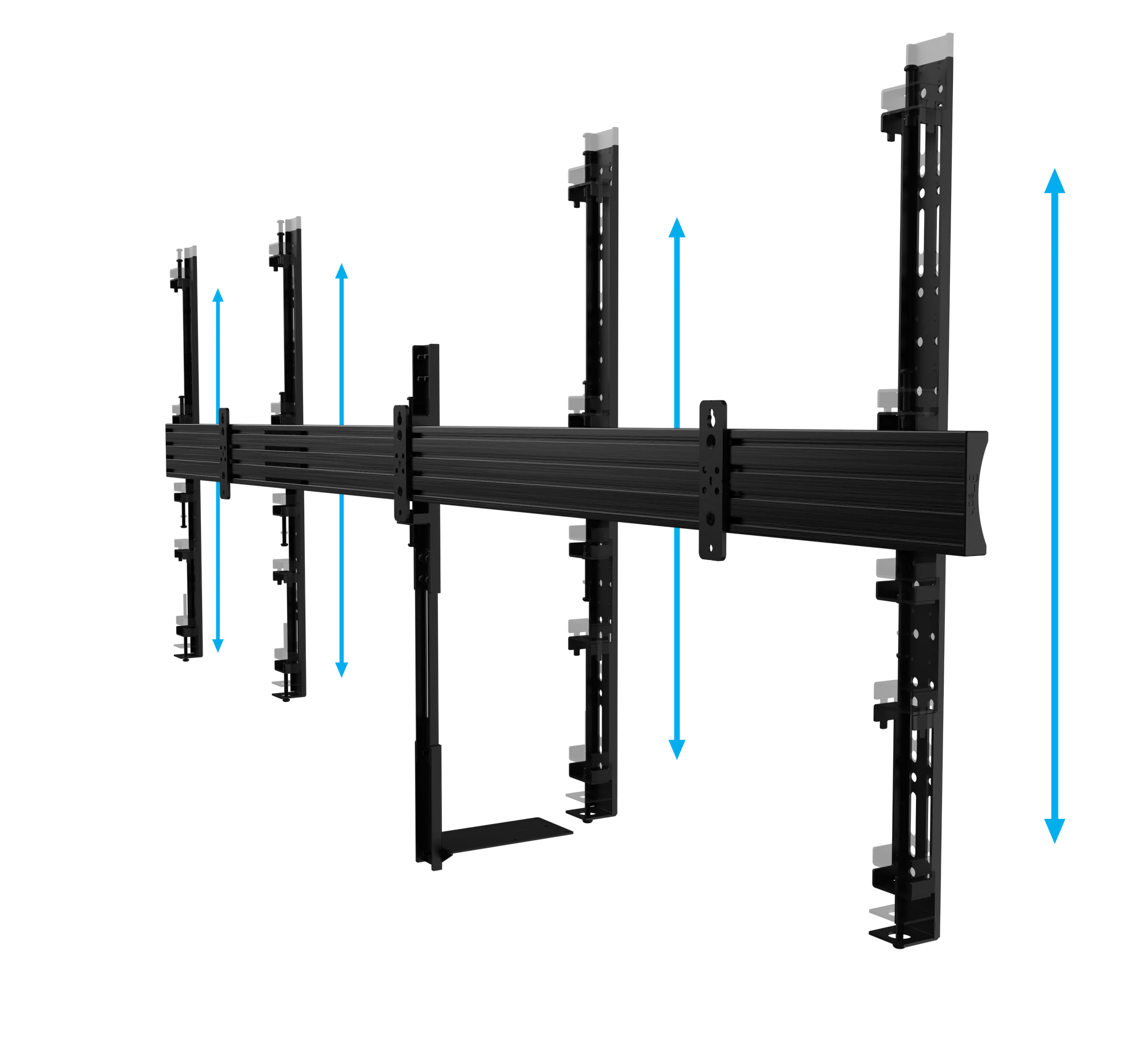

  • Interface arms include levelling screws to adjust the screen height
  • Cable management clips are included to hide cables
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation with all mounting hardware included
  • 100% plastic free packaging
  • Universal design suitable for mounting two screens side by side
  • High-end aesthetic quality
  • Includes VC shelf which can be fixed above or below the screen
  • VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points
  • Interface arms include levelling screws to adjust the screen height
  • Cable management clips are included to hide cables
  • Safety screws help prevent unauthorised screen removal
  • Simple 'hook-on' screen installation with all mounting hardware included
  • 100% plastic free packaging

Product Specifications

  • Recommended display size: 65" up to 75"
  • Max load: 70kg per screen
  • VESA fixings: up to 600mm x 800mm
  • Product width: 2450mm
  • Product depth: 290mm
  • Max product height: 889mm
  • Max product height: 1106mm
  • Distance from wall: 292.5mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Orientation: Landscape
  • Shelf Max Load: 4kg
  • Accessory Mounting Arm extension (from centre of screen): Min.249mm - Max.645mm
  • Colour: Black
  • Recommended display size: 65" up to 75"
  • Max load: 70kg per screen
  • VESA fixings: up to 600mm x 800mm
  • Product width: 2450mm
  • Product depth: 290mm
  • Max product height: 889mm
  • Max product height: 1106mm
  • Distance from wall: 292.5mm
  • Shelf depth: 235mm
  • Shelf width: 120mm
  • Shelf height: 3mm
  • Orientation: Landscape
  • Shelf Max Load: 4kg
  • Accessory Mounting Arm extension (from centre of screen): Min.249mm - Max.645mm
  • Colour: Black

Ordering & Box Information

Order Code: BT8417/B

Barcode: 5019320000000

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 19.29kg

Order Code: BT8417/B

Barcode: 5019320000000

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 19.29kg
