• Designed to wall mount 21:9 ultra-wide signage displays
• Universal design suitable for other extra-large screens over 80"
• Tool-less micro-adjustment of +/-7mm
• Pop-out system provides a safe and easy service access
• Straightforward 'hook-on' installation
• Cable management clips included to keep the installation tidy
• Ideal for recess mounting

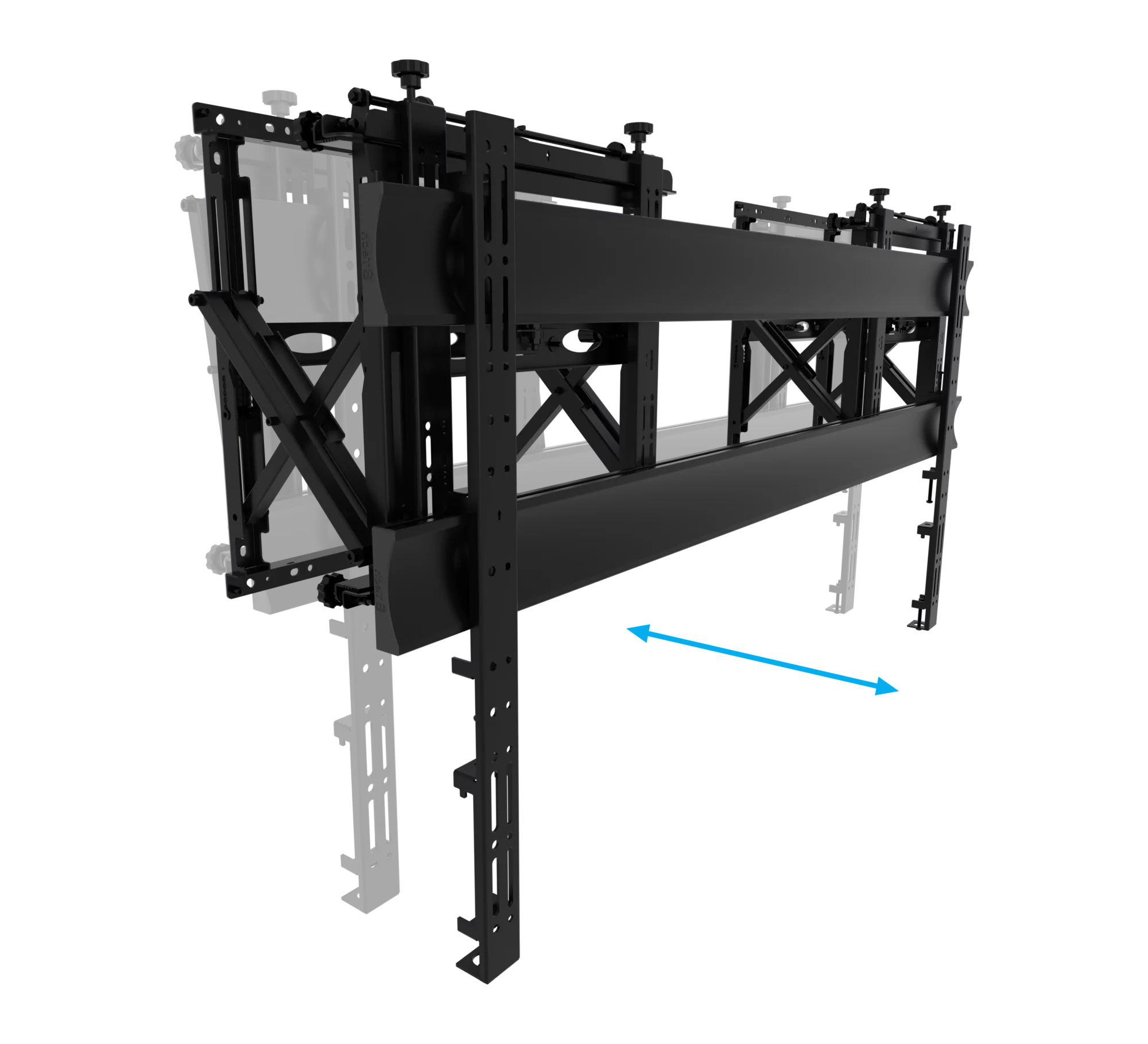

• Features depth, height and lateral micro-adjustment
• Keyhole fixings on wall plates for an easier installation
• Safety screws help prevent unauthorised removal of screens
• All mounting hardware included
• Suitable use with: Jupiter Pana105T, Avocor AVL-1050-T & Viewsonic IFP105S displays

• Recommended display size: 80" up to 120"
• Max load: 200kg
• VESA fixings: up to 1600mm x 800mm
• Product width: 1754mm
• Product height: 936.5mm
• Distance from wall: 146.5mm
• Popped out depth: 338.5mm
• Tool-less micro-adjustment: +/-7.5mm per corner
• Orientation: Landscape
• Colour: Black

Order Code: BT9926/B

Barcode: 5019318308888

HS Code: 83024200

Single Box Item or Multi Box Item: Multi Box Item

Total Boxed Weight (kg): 38.29kg
